200W TEC Air Conditioner widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control request

Brand Name : Adcol

Model Number : ATA200-48VDC

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1EA

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 200Pcs/Month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

P/N : ATA200-48VDC

Cooling Method : Air to air

Heat dissipation : Air

Ambient temperature/humidity : -20 to 60°C

Cooling Capacity : 190W

Iuput Voltage : 48VDC

Max voltage : 55VDC

Perk current i : 10A

Outside Fan : IP55

Weight : 7.5Kg

Life Time : >=70,000 Hours

Noise : 55 dB

Tolerance : 10%

Contact Now

200W TEC Air Conditioner widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control request

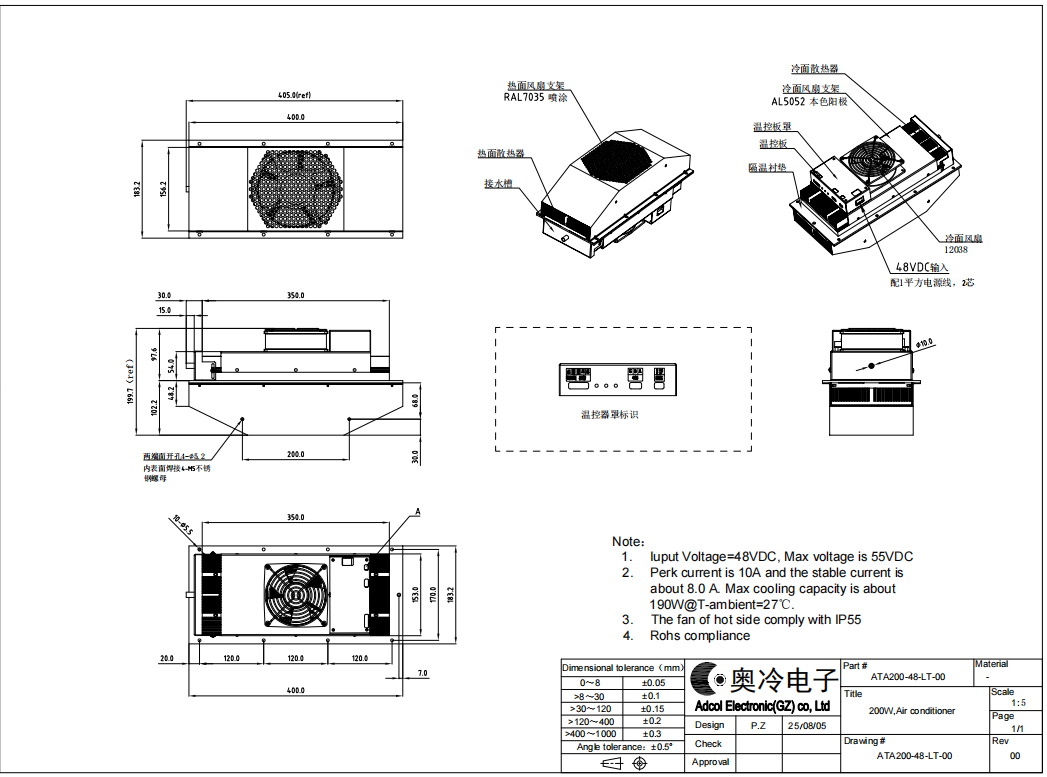

ATA200-48VDC
Air to air thermoelectric Cooler Assembly
The ATA200-48 Thermoelectric air conditioner is designed for electronic cabinets and
environmental chambers. It can maintain ambient temperatures while removing up to 200W.
This model is available in 48VDC configurations. This air conditioner is virtually maintenance-free,
with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility
with solid-state reliability
Features 特点

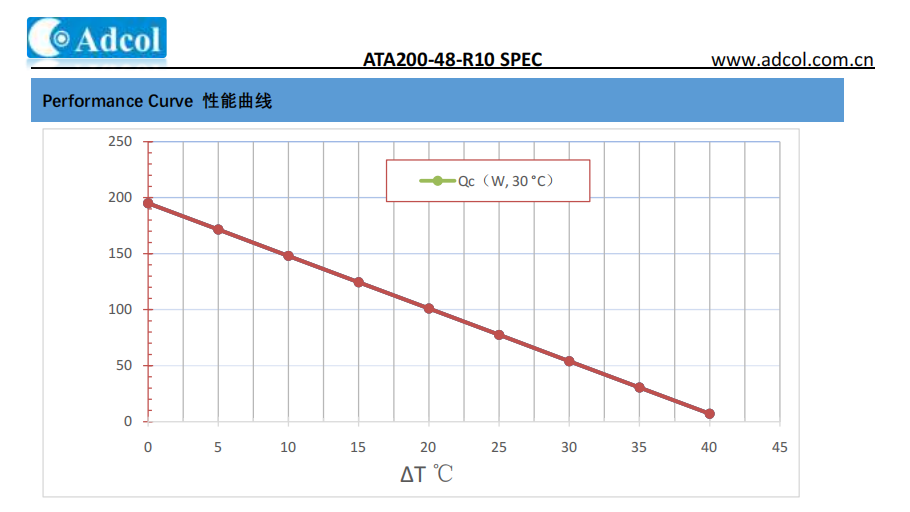

  • 200W capacity rated at ΔT = 0ºC,Tambient = 30°C 在环境温度 30 度下制冷量约 200 瓦
  • Refrigerant free - environmentally friendly 不使用制冷剂-环境友好
  • Wide operating temperature range of –20°C to +60°C 使用环境温度宽–20°C to +60°C
  • Shift between heating and cooling without using a heater 加热制冷切换
  • Reduced noise and vibration with no moving parts 无机械压缩,运行安静可靠
Application 应用
  • Outdoor enclosures 外柜子的冷却
  • Outdoor/Indoor Kiosks and display 户外户内机柜和显示装置的冷却
  • Battery Cabinet 电池仓的冷却
  • Food/Consumer Refrigerator 食品消费品冷藏箱

200W TEC Air Conditioner widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control request

200W TEC Air Conditioner widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control request
