200W 24VDC Air conditioner are widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control

Name: 200W 24VDC Air conditioner are widely used in outdoor battery cabinet indoor battery cabinet and other kiosk which has the temperature and control
Brand: Adcol
Price: 1 USD

China 200W 24VDC Air conditioner are widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control wholesale

Brand Name : Adcol

Model Number : ATA200-24VDC

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1EA

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 200Pcs/Month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

P/N : ATA200-24VDC

Cooling Method : Air to air

Cool Objective : Air

Heat dissipation : Air

Iuput Voltage : 24VDC

Max voltage : 27VDC

Perk current : 13.6A

Max cooling capacity : 190W

Outside Fan : IP55

Installation : Screw

Noise : 55 dB

Expected life : Over 70,000 hrs

Net Weight : 7.5kg

Contact Now

200W 24VDC Air conditioner are widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control

ATA200-24-00

Air to air thermoelectric Cooler Assembly

The ATA200-24 Thermoelectric air conditioner is designed for electronic cabinets

and environmental chambers. It can maintain ambient temperatures while removing

up to about200W. This model is available in 24VDC configurations. This air

conditioner is virtually maintenance-free, with no filters ambient to change, and it can

be mounted in any orientation, offering design flexibility with solid-state reliability.

Application

Our products are widely used in outdoor battery cabinet, indoor battery cabinet and other

kiosk which has the temperature and control request.

Technical requirements

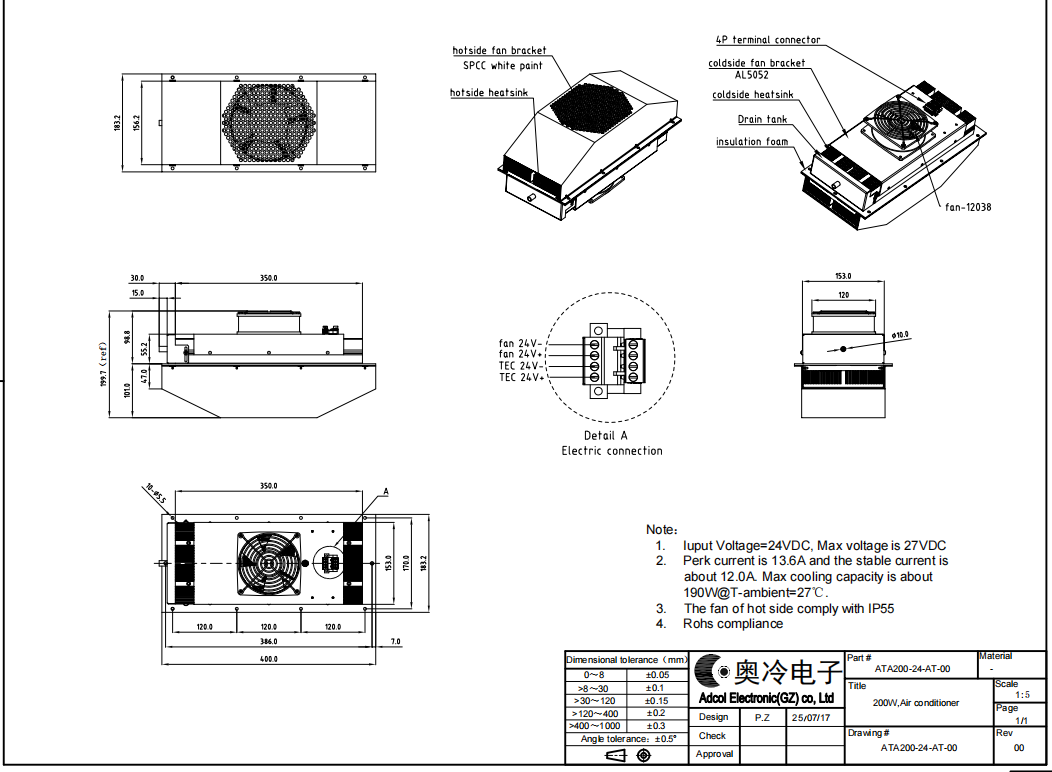

ATA200-24VDC consists of six portions - thermoelectric module, coldside heatsink,

hotside heatsink, coldside fan, hotside fan and monitoring unit.

When power is supplied to the ATA200-24VDC, one side of the TEM will be cool

and theother side will heat.The cold/heat generated will be radiated to the surroundings

via the cold/hot side heatsink and fans.

The cold side heatsink and fan direct the inner air into the cabinet to cool it, The hot

end side heatsink and fan direct the outside air for heat dissipating into the external environment.

ATA200-24VDC both inner and external fan are blow in the heat sink and air come out

from two ends.

200W 24VDC Air conditioner are widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control
